Garant Optima P6.67 full color SMD outdoor front-maintenance fixed led display
Features:
Front/ Rear Maintenance
saving space and cost on the construction and improving installation efficiency.
Ultra-wide Viewing Angle
With 120°(H/V) Ultra wide viewing angle.
High Energy Saving
The maximum power consumption is only 320W with 6000nit high brightness.
Exquisite Color
High RGB gray scan processing, colorful, vivid and clear viewing effect.
Lightweight & Thin design
light Cabinet , more easy for carrying and installing, saving cost.
High IP Level Safety and Stability
With the protection rating of IP65, With the professional aviation plug as the connectors to ensure the quality.
Easy Installation
Both for stack installation and rental using, fast installation without screw fixing.
Quiet design
Quiet design, no air conditioning, fanless installation, no noise, reduce power consumption.
Our Advantage:
Our products VS others
Gray Scare
Refresh rate
Brightness
Specification:
| LED Display Model | GOO-667F | GOO-800F | GOO-1000F |
| Module Specification | Pixel Pitch | 6.67 mm | 8 mm | 10 mm |
| Pixel Density | 22500 dot//㎡ | 15625 dot//㎡ | 10000 dot//㎡ |
| LED Shape | SMD 3in1 | SMD 3in1 | SMD 3in1 |
| LED Configuration | SMD2727(1R1G1B) | SMD2727(1R1G1B) | SMD2727(1R1G1B) |
| Module Size | 320x320 mm | 320x320 mm | 320x320 mm |
| Module Resolution | 48*48 dot | 40*40 dot | 32*32dot |
| Cabinet Specification | Cabinet Size | 960x960 mm | 960x960 mm | 960x960 mm |
| Cabinet Resoltuion | 144x144 dot | 120x120 dot | 96x96 dot |
| Cabinet Material | Waterproof Iron Cabinet | Waterproof Iron Cabinet | Waterproof Iron Cabinet |
| Cabinet Weight | 48 kg/㎡ | 48 kg/㎡ | 48 kg/㎡ |
| Screen Specification | Brightness | ≥6000 cd//㎡ | ≥5000 cd//㎡ | ≥5500 cd//㎡ |
| Viewing angle | H/V 140/140 | H/V 140/140 | H/V 140/140 |
| Viewing Distance | >>6 Meters | >>8 Meters | >>10 Meters |
| Display Color | 16.7M | 16.7M | 16.7M |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Grey Scale | 14Bit | 14Bit | 14Bit |
| Scanning Mode | 1/6S | 1/5S | 1/2S |
| IP Rating | Front/Back IP65/IP54 | Front/Back IP65/IP54 | Front/Back IP65/IP54 |
| Max power consumption | 660 W//㎡ | 700 W//㎡ | 950W//㎡ |
| Ave power consumption | 260 W//㎡ | 240 W//㎡ | 320 W//㎡ |
| Working Voltage | AC 100-240V, 50-60HZ | AC 100-240V, 50-60HZ | AC 100-240V, 50-60HZ |
| Control Mode | Synchronization controlled by PC | Synchronization controlled by PC | Synchronization controlled by PC |
| Data Transmission | CAT5/ Optic Fiber | CAT5/ Optic Fiber | CAT5/ Optic Fiber |
| Controlling system | linsn, Nova, Mooncell | linsn, Nova, Mooncell | linsn, Nova, Mooncell |
| Video signal input | Composite,DVI,VGA,HDMI,HDSDI | Composite,DVI,VGA,HDMI,HDSDI | Composite,DVI,VGA,HDMI,HDSDI |
| Working Temperature | -20~65 ℃ | -20~65 ℃ | -20~65 ℃ |
| Working Humidity | 10-90% RH | 10-90% RH | 10-90% RH |
| Brightness Adjustment | 0~100 levels | 0~100 levels | 0~100 levels |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Pixel failing Rate | 0.0001 | 0.0001 | 0.0001 |
| Working Environment | Outdoor | Outdoor | Outdoor |
Details Preparation:
LED Display Module
320x320mm 48x48 dot SMD2727 LED Display Module

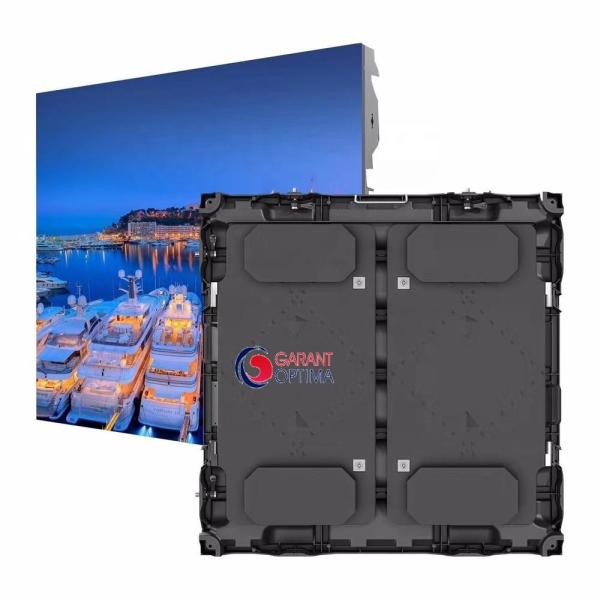

LED Display Cabinet
960x960mm waterproof iron cabinet
Application:
The P6.67 full color SMD outdoor front-maintenance fixed led display is usually used for outdoor advertising, shopping mall, square, park, stadium etc
|
|
P6.67 full color SMD outdoor front-maintenance fixed led display with waterproof cabinet for led video wall Images
|
